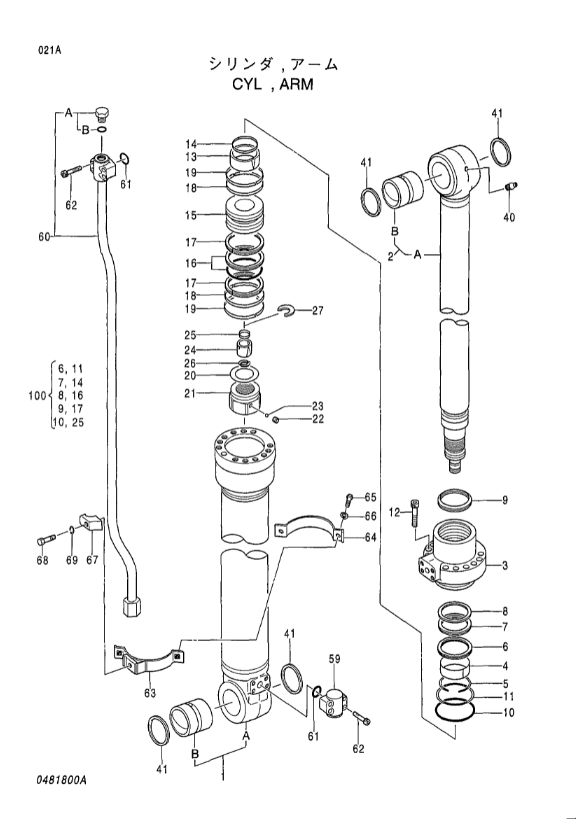

YNF00059 4369914 EX150 EX200-3 EX200-3C EX200-3m Arm Cylinder Seal Kit
Parts on group ARM CYLINDER:
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
4314778 |
[1] |
CYL.;ARM |
0481800A |
| 1-41. |
4286777 |
[1] |
CYL. (PIPELESS) |
|
| 1 |
4286778 |
[1] |
TUBE;CYL. ASS'Y |
|
| 1A. |
409901 |
[1] |
TUBE;CYL. |
|
| 1B. |
409902 |
[1] |
BUSHING;PIN |
|
| 2 |
4286779 |
[1] |
ROD;PISTON ASS'Y |
|
| 2A. |
409903 |
[1] |
ROD;PISTON |
|
| 2B. |
409902 |
[1] |
BUSHING;PIN |
|
| 3 |
409904 |
[1] |
HEAD;CYL. |
|
| 4 |
309204 |
[1] |
BUSHING |
|
| 5 |
236905 |
[1] |
RING;RETAINING |
|
| 6 |
409905 |
[1] |
RING |
|
| 7 |
127207 |
[1] |
PACKING;U-RING |
|
| 8 |
236919 |
[1] |
RING;BACK-UP |
|
| 9 |
481801 |
[1] |
RING;WIPER |
I 0481803 |
| 9 |
481803 |
[1] |
RING;WIPER |
|
| 10 |
A811125 |
[1] |
O-RING |
|
| 11 |
409906 |
[1] |
RING;BACK-UP |
|
| 12 |
409907 |
[12] |
BOLT;SOCKET |
|
| 13 |
409908 |
[1] |
BRG.;CUSHION |
|
| 14 |
409909 |
[1] |
SEAL |
|
| 15 |
409910 |
[1] |
PISTON |
Y 0481804 |
| 15 |
481804 |
[1] |
PISTON |
|
| 16 |
254305 |
[1] |
RING;SEAL ASS'Y |
|
| 17 |
409911 |
[2] |
RING;BACK-UP |
|
| 18 |
409912 |
[2] |
RING |
|
| 19 |
254309 |
[2] |
RING |
|
| 20 |
309216 |
[1] |
SHIM |
|
| 21 |
309213 |
[1] |
NUT |
|
| 22 |
309011 |
[1] |
SCREW;SET |
|
| 23 |
111707 |
[1] |
BALL;STEEL |
|
| 24 |
409913 |
[1] |
BRG.;CUSHION |
|
| 25 |
409914 |
[1] |
SEAL |
|
| 26 |
409915 |
[2] |
STOPPER |
|
| 27 |
409916 |
[1] |
RING;RETAINING |
|
| 40 |
J75481 |
[1] |
FITTING;GREASE |
|
| 41 |
4067902 |
[4] |
SEAL;DUST |
|
| 59 |
387307 |
[1] |
JOINT |
|
| 60 |
409918 |
[1] |
PIPE |
|
| 60A. |
4113926 |
[1] |
PLUG |
|
| 60B. |
4506429 |
[1] |
O-RING |
|
| 61 |
984614 |
[2] |
O-RING |
|
| 62 |
309020 |
[8] |
BOLT;SOCKET |
|
| 63 |
409919 |
[1] |
BAND |
|
| 64 |
409920 |
[1] |
BAND |
|
| 65 |
408815 |
[2] |
BOLT |
|
| 66 |
325913 |
[2] |
WASHER |
|
| 67 |
309219 |
[1] |
CLAMP;PIPE |
|
| 68 |
237417 |
[1] |
BOLT |
|
| 69 |
208516 |
[1] |
WASHER;SPRING |
|
| 100 |
4316625 |
[1] |
KIT;SEAL |
I 4369914 |
| 100 |
4369914 |
[1] |
KIT;SEAL |
|
