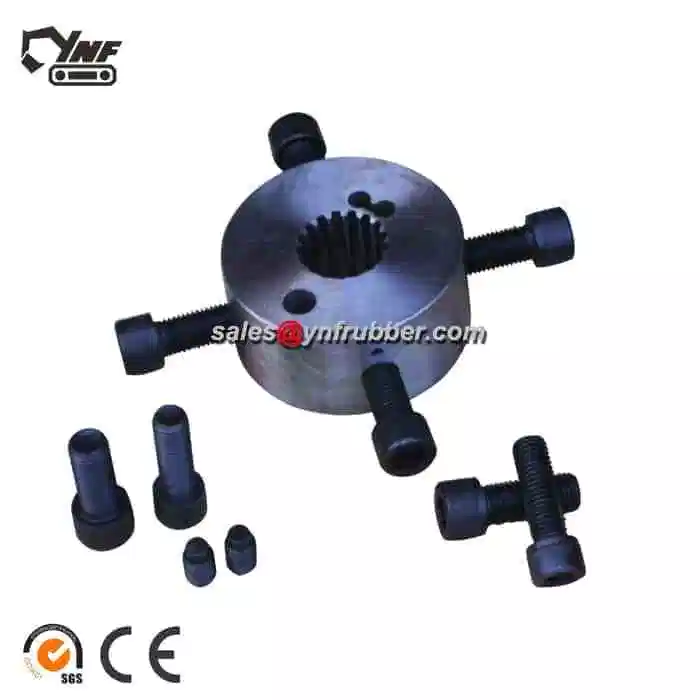

Coupling Hub & Spline for Flexible Rubber Couplings which replace for Centaflex CF-A CF-H Couplings

Views : 2749
Update time : 2020-12-08 15:38:59
Coupling Hub & Spline for Flexible Rubber Couplings which replace for Centaflex CF-A CF-H Couplings


YNF provides many Coupling Hub & Coupling Spline which are perfectly fit for the A/AS couplings, H couplings.

The coupling hub or coupling spline cover the following hydraulic pump model or excavator models:

DH220-5, DH55, hitachi A8V59ESBR, K3V63, K3V112, K3V180, K5V80, K3V140, SK100, ZAX70, ZAX120, E120, E312, E70B, HD307, 1545561, EX220, EX200-5, EX200-6, ZAX200, SK450, EX200-1, EX300, ZX330, PC200-1, EX200-2, EX200-3, EX120-5, SK200-8, SK260-8, E320C, CAT 304, SAMSUNG 130SE LC2, JCB JS130, JCB JS200, JS220, AP2240G, CAT 320, R60, etc.



YNF code Dimensions Remarks
YNF03734 10T Spline ID14.5/18 OD00 H46 Z3 bolt12mm 10 inner teeth
YNF01422 10T Spline ID14.5/18 OD60 H36 Z3 bolt10mm 10 inner teeth
YNF01640 11T Spline Hub ID16/19 OD60 H36 Z3 10mm 11 inner teeth
YNF02947 14T Spline Hub ID16/19 OD70 H46 Z3 Bolt12mm 14 inner teeth
YNF02930 12T ID30/35 OD85 H45 Z4 16MM 12 inner teeth
YNF01879 12T Spline Hub ID30/35 OD100 H50 Z4 bolt16mm 12 inner teeth
YNF00927 12T Spline ID30/35 OD100 H50 Z4 bolt18mm 12 inner teeth
YNF01639 12T Spline Hub ID30/35 OD100 H65 Z4 bolt16mm 12 inner teeth
YNF03038 13T Spline ID19*22 OD85 H45 BOLT14 13 inner teeth
YNF01881 13T Spline Hub ID19/22 OD100 H50 Z3 bolt16mm 13 inner teeth
YNF02946 14T Spline Hub ID19/22 OD70 H46 Z4 Bolt12mm 14 inner teeth
YNF01880 13T Spline Hub ID19/22 OD70 H50 Z3 bolt12mm 13 inner teeth
YNF01882 13T Spline Hub ID19/22 OD85 H45 Z3 bolt146mm 13 inner teeth
YNF03413 13T Spline Hub 19/22 OD60 H36 Z3 BOLT 10mm 13 inner teeth
YNF03718 14T HUB ID27.3/31.2 OD60 H36 Z3 10mm 14 inner teeth
YNF00891 14T Spline Hub ID27/31 OD85 H45 Z3 Bolt14mm 14 inner teeth
YNF03761 14T Spline Hub ID27/31 OD85 H50 Z4 Bolt16mm 14 inner teeth
YNF01477 14T Spline Hub ID28/33 OD100 H66 Z3 Bolt16mm 14 inner teeth
YNF01431 14T Spline Hub ID35/40 OD100 H50 Z4 Bolt16mm 14 inner teeth
YNF02859 14T Spline Hub ID35/40 OD100 H50 Z4 Bolt18mm 14 inner teeth
YNF01478 14T Spline Hub ID35/40 OD100 H62 Z4 Bolt16mm 14 inner teeth
YNF01642 14T Spline Hub ID35/40 OD100 H62 Z4 Bolt18mm 14 inner teeth
YNF01643 14T Spline Hub ID35/40 OD125 H62 Z4 Bolt20mm 14 inner teeth
YNF01641 14T Spline Hub ID35/40 OD85 H53 Z4 Bolt16mm 14 inner teeth
YNF01198 14T HUB ID:27/31 OD100 H:57 Z4 16mm 14 inner teeth
YNF02139 14T Spline Hub ID28/31.5 OD100 H66 Z4 Bolt16mm 14 inner teeth
YNF01206 15T spline ID22/26 OD70 H37 Z3 bolt12mm 15 inner teeth
YNF02450 15T spline ID22/26 OD85 H45 Z3 bolt14mm 15 inner teeth
YNF03543 15T spline ID22/26 OD85 H45 Z4 bolt14mm 15 inner teeth
YNF02325 15T spline ID29/34 OD100 H57 Z4 Bolt14mm 15 inner teeth
YNF00805 15T HUB ID29/34 OD100 H66 Z3 16mm 15 inner teeth
YNF01096 15T HUB ID35/40 OD100 H65 Z4 16MM 15 inner teeth
YNF01475 15T spline ID36/42 OD100 H46 Z4 bolt16mm 15 inner teeth
YNF01474 15T spline ID36/42 OD85 H44 Z4 bolt16mm 15 inner teeth
YNF02451 15T spline ID44/50 OD125 H78 Z4 bolt20mm 15 inner teeth
YNF00854 15T Spline ID44/51 OD100 H45 Z4 16MM 15 inner teeth
YNF02971 15T Spline Hub ID44/51 OD100 H47 Z4 bolt18mm 15 inner teeth
YNF03566 15T HUB ID44/51 OD100 H50 Z4 bolt18mm 15 inner teeth
YNF03544 15T Spline Hub ID44/51 OD100 H55 Z4 bolt18mm 15 inner teeth
YNF01476 15T HUB ID44/51 OD125 H62 Z4 20mm 15 inner teeth
YNF01479 15T spline ID45/52 OD160 H60 Z4 bolt20mm 15 inner teeth
YNF01621 160H HUB 12T 12 inner teeth
YNF03440 16T spline ID40/45 OD100 H42 Z4 bolt18mm 16 inner teeth
YNF02452 16T spline ID40/45 OD100 H62 Z4 bolt16mm 16 inner teeth
YNF03567 16T spline ID40/45 OD85 H42 Z4 bolt14mm 16 inner teeth
YNF01213 16T spline ID40/45 OD85 H42 Z4 bolt16mm 16 inner teeth
YNF02697 17T HUB 42/47 OD85 H45 17 inner teeth
YNF02121 17T spline hub ID 28/31 OD 85 H 42 Z4 16mm 17 inner teeth
YNF03545 17T spline hub ID28/31 OD85 H42 Z3 16mm 17 inner teeth
YNF01210 17T Spline ID34/37.8 OD100 H54 Z4 bolt16mm 17 inner teeth
YNF02841 17T Spline ID34/37.8 OD100 H54 Z4 bolt18mm 17 inner teeth
YNF03419 17T Spline ID34/37.8 OD85 H45 Z4 bolt16mm 17 inner teeth
YNF03398 17T Spline ID40/46 OD100 H66 Z4 bolt16mm 17 inner teeth
YNF03546 17T spline ID42/47 OD100 H45 Z4 16mm 17 inner teeth
YNF03547 17T spline ID42/47 OD100 H45 Z4 18mm 17 inner teeth
YNF03548 17T spline ID42/47 OD100 H70 Z4 18mm 17 inner teeth
YNF00846 17T spline ID42/47 OD125 H62 Z4 Bolt20mm 17 inner teeth
YNF03549 17T spline ID42/47 OD160 H60 Z4 20mm 17 inner teeth
YNF01473 21T spline ID40/45 OD100 H66 Z3 bolt16mm 21 inner teeth
YNF03414 21T spline hub 40/45 OD100 H55 Z4 BOLT 16mm 21 inner teeth
YNF02453 22T spline ID44/49 OD125 H53 Z4 bolt20mm 22 inner teeth
YNF01452 23T spline ID35.5/39.5 OD100 H65 Z3 bolt16mm 23 inner teeth
YNF03735 23T spline ID35.5/39.5 OD100 H65 Z4 bolt16mm 23 inner teeth
YNF03550 24T spline ID46*51 OD100 H60 Z4 16mm 24 inner teeth
YNF03551 24T spline ID46*51 OD100 H67 Z4 16mm 24 inner teeth
YNF02591 24T Spline Hub ID46/51 OD125 24 inner teeth
YNF03710 9T HUB ID12/15.6 OD60 H36 Z3 10mm 9 inner teeth
YNF00659 SAMSUNG 130SE LC2 spling hub
YNF03417 14T SPLINE ID 31/27mm H 50mm OD 85MM 4HOLES 14 inner teeth
YNF03694 Solid hub OD100 H66 Z4 S16mm
YNF03723 Solid Hub OD58.74 H41.28 Z4 bolt10mm
*If you can’t find the one you need, you send contact us. We can do customized for you according to your drawing or dimensions.
